Tugas Pendahuluan 2






PERCOBAAN 5 KONDISI 6



1. Prosedur
[Kembali]

1.Rangkailah seperti rangkaian berikut
2.Buka Arduino IDE dan masukan listing program Upload program ke arduino
3.Variasikan tombol yang ditekan dan amati keluarannya pada LCD

2. Hardware dan Diagram Blok [Kembali]





Diagram Blok

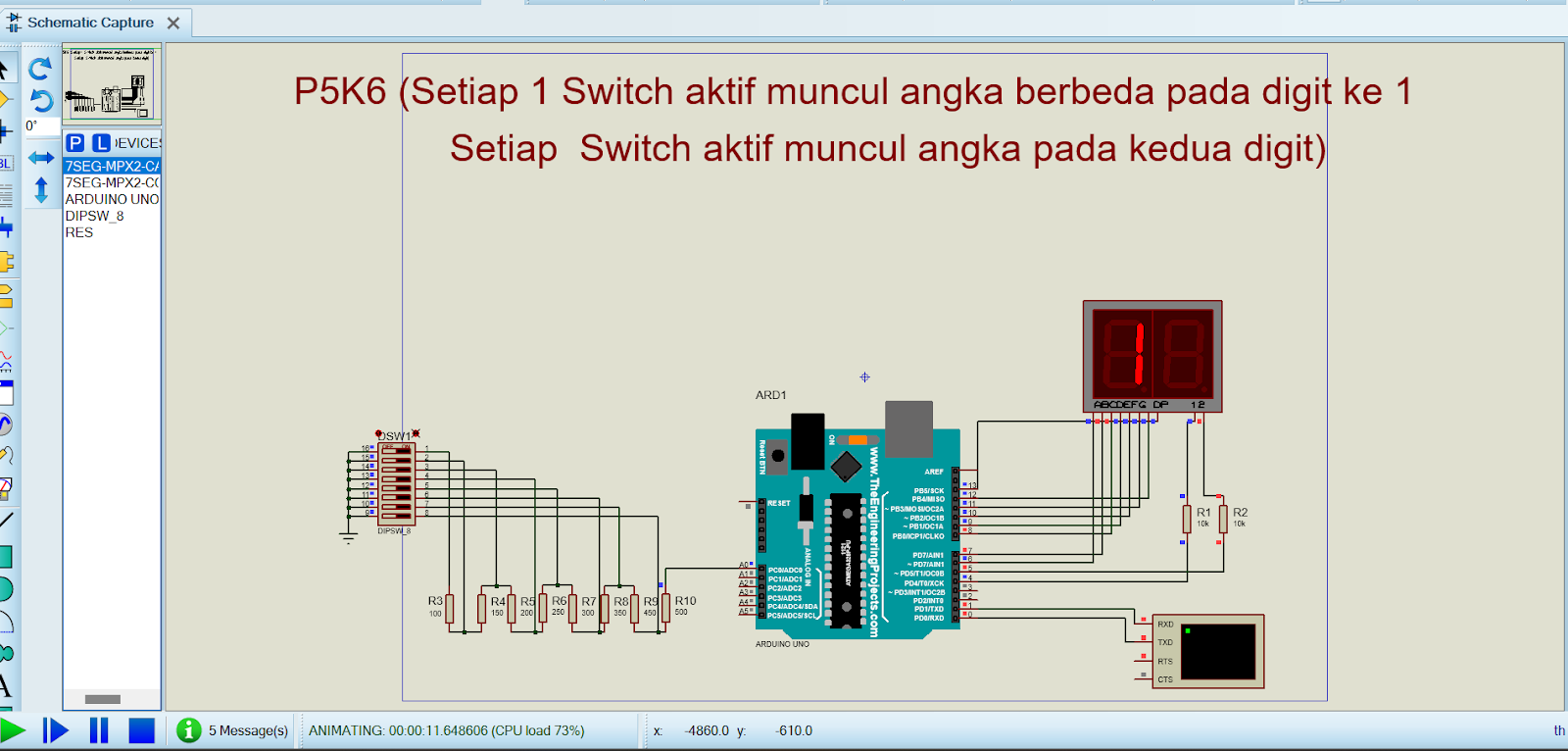

3. Rangkaian Simulasi dan Prinsip Kerja [Kembali]



Sebelum disimulasikan



Setelah disimulasikan


Prinsip Kerja:

    Fungsi rangkaian ini adalah sebagai berikut: Dipswitch berfungsi sebagai input, di mana saklar pada dipswitch menghasilkan input analog yang dapat diubah menjadi digital; dual seven segment berfungsi sebagai output, yang menampilkan angka yang sesuai dengan saklar yang diaktifkan; dan kemudian setiap jumlah saklar yang aktif mempengaruhi output dual seven segment.


4. Flowchart dan Listing Program [Kembali]




Listing Program.


//M1P5
#define a 6
#define b 7
#define c 8
#define d 9
#define e 10
#define f 11
#define g 12
#define dp 13
#define D1 4
#define D2 5
#define Dsw A0
/*39
32
26 27
19
*/
int segments[] = {a,b,c,d,e,f,g};
byte digitPatterns[10][7] = {
  {1, 1, 1, 1, 1, 1, 0}, // 0
  {0, 1, 1, 0, 0, 0, 0}, // 1
  {1, 1, 0, 1, 1, 0, 1}, // 2
  {1, 1, 1, 1, 0, 0, 1}, // 3
  {0, 1, 1, 0, 0, 1, 1}, // 4
  {1, 0, 1, 1, 0, 1, 1}, // 5
  {1, 0, 1, 1, 1, 1, 1}, // 6
  {1, 1, 1, 0, 0, 0, 0}, // 7
  {1, 1, 1, 1, 1, 1, 1}, // 8
  {1, 1, 1, 1, 0, 1, 1}  // 9
};


void setup() {
  // put your setup code here, to run once:

   for (int i = 0; i < 7; i++) {
    pinMode(segments[i], OUTPUT);
  }
  pinMode(dp,OUTPUT);
  pinMode(D1,OUTPUT);
  pinMode(D2,OUTPUT);
  pinMode(Dsw,INPUT_PULLUP);
  Serial.begin(9600);

void number (int display) {
  if (display  >= 0 && display <= 9) {
    for (int i = 0; i < 7; i++) {
      digitalWrite(segments[i], digitPatterns[display ][i]);
    }
  }

void loop() {

  int sw = analogRead(Dsw);
  Serial.print("ADC Value = ");
  Serial.println(sw);
  delay(100);


  if(sw == 23){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(0);
delay(50);
  }
else if(sw == 22){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(0);
delay(1000);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(1);
delay(1000);
  }else if(sw == 21){
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(0);
delay(1000);
number(1);
delay(1000);
number(2);
delay(1000);
number(3);
delay(1000);
number(4);
delay(1000);
number(5);
delay(1000);
number(6);
delay(1000);
number(7);
delay(1000);
number(8);
delay(1000);
number(9);
delay(1000);
  }else if(sw == 19){
digitalWrite(D1,HIGH);
digitalWrite(D2,HIGH);
number(0);
delay(1000);
number(1);
delay(1000);
number(2);
delay(1000);
number(3);
delay(1000);
number(4);
delay(1000);
number(5);
delay(1000);
number(6);
delay(1000);
number(7);
delay(1000);
number(8);
delay(1000);
number(9);
delay(1000);
  }else if(sw == 16){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(0);
delay(500);
number(1);
delay(500);
number(2);
delay(500);
number(3);
delay(500);
number(4);
delay(500);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(5);
delay(500);
number(6);
delay(500);
number(7);
delay(500);
number(8);
delay(500);
number(9);
delay(500);
  }else if(sw == 13){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delayMicroseconds (500);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(0);
delayMicroseconds (500);
  }else if(sw == 10){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(9);
delay(500);
number(8);
delay(500);
number(7);
delay(500);
number(6);
delay(500);
number(5);
delay(500);
number(4);
delay(500);
number(3);
delay(500);
number(2);
delay(500);
number(1);
delay(500);
number(0);
delay(500);
  }else if(sw == 5){
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(0);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(1);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(2);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(3);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(4);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(5);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(6);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(7);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(8);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);

number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(3);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(4);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(5);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(6);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(7);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(8);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(1);
delay(50);
digitalWrite(D1,HIGH);
digitalWrite(D2,LOW);
number(9);
delay(50);
digitalWrite(D1,LOW);
digitalWrite(D2,HIGH);
number(2);

5. Video Demo [Kembali]

SAAT PRAKTIKUM.

6. Kondisi [Kembali]

P5K6 (Setiap 1 Switch aktif muncul angka berbeda pada digit ke 1, Setiap Switch aktif muncul angka pada kedua digit)


7. Video Simulasi [Kembali]




8. Link Download [Kembali].

Link Download HTML (klik disini)
Link Download Rangkaian (klik disini)
Link Download Video (klik disini)
Datasheet Datasheet (klik disini)
Arduino (klik disini)
